Makita CXT Series SK105GDZ Cross Line Beam Laser, 115 ft Without Detector, 262 ft with Detector, +/-1/8 in Accuracy

  • Model Number: SK105GDZ
  • UPC: 088381851909
  • Store SKU: loading
  • Makita CXT Series SK105GDZ Cross Line Beam Laser, 115 ft Without Detector, 262 ft with Detector, +/-1/8 in Accuracy

    • Availability:
      • Supplier SKU: loading
      • Web SKU: 103852501
    Makita SK105GDZ

    Lasers are typically utilized in the early stages of construction and measurement needs will vary based on application requirements. The Makita® 12 V max CXT® lithium-ion self-leveling cross line green beam laser (SK105GDZ) gives the user a cordless solution for selectable horizontal/vertical cross reference lines required for level, align and plumb applications. Depending on ambient light in the working environment, the SK105GDZ has a line visibility range up to 115 ft and is detectable up to 262 ft with a Makita® laser detector (sold separately). The SK105GDZ has a bright 525 nm class II green laser with +/-1/8 in at 33 ft for Excellent in-class accuracy. The laser line fan length spans past the 90 deg position to provide 180 deg horizontal and 160 deg vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 s for increased productivity. For longer run-time, all 12 V max CXT® cordless tools are also compatible with the 12 V max CXT® lithium-ion 4 Ah battery (BL1041B). 12V max CXT® lithium-ion batteries are engineered with a battery protection circuit that protects against overloading, over discharging and over heating. It's part of the expanding 12 V max CXT® series, combining performance with great ergonomics in a compact size. For users in the 18 V LXT® battery platform, the SK105GDZ has a power connector port that allows an 18 V LXT® battery to be used with the power source adapter (ADP05) and adapter cord (adapter and cord sold separately).

    Accuracy    :    +/-1/8 in
    Battery Capacity    :    4 Ah
    Battery Type    :    Lithium-Ion
    Battery Voltage    :    12 V
    IP Rating    :    IP54
    Includes    :    (1) LE00870131 Magnetic L-Adapter, (1) LE00823195 Magnetic Green Target Plate and (1) Storage Pouch
    Laser Color    :    Green
    Laser Diode    :    510-530 nm, Class II
    Leveling Type    :    Self
    Measuring Range    :    115 ft Without Detector, 262 ft with Detector
    Number of Beams    :    2
    Number of Lines    :    2
    • Makita 12 V max CXT® 4 Ah rechargeable battery provides up to 20 hr of continuous run time (battery not included)
    • Green line visibility range up to 115 ft depending on ambient light and detectable up to 262 ft with Makita® laser detector LE00855702 (sold separately)
    • Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport and storage
    • Self-leveling is correctable up to 4 deg of slope allowing operation on uneven surfaces
    • Dust and water resistance with IP54 rating for increased durability
    • Highly protected laser windows are recessed into the housing for increased durability
    • Rubberized housing over mold for increased protection

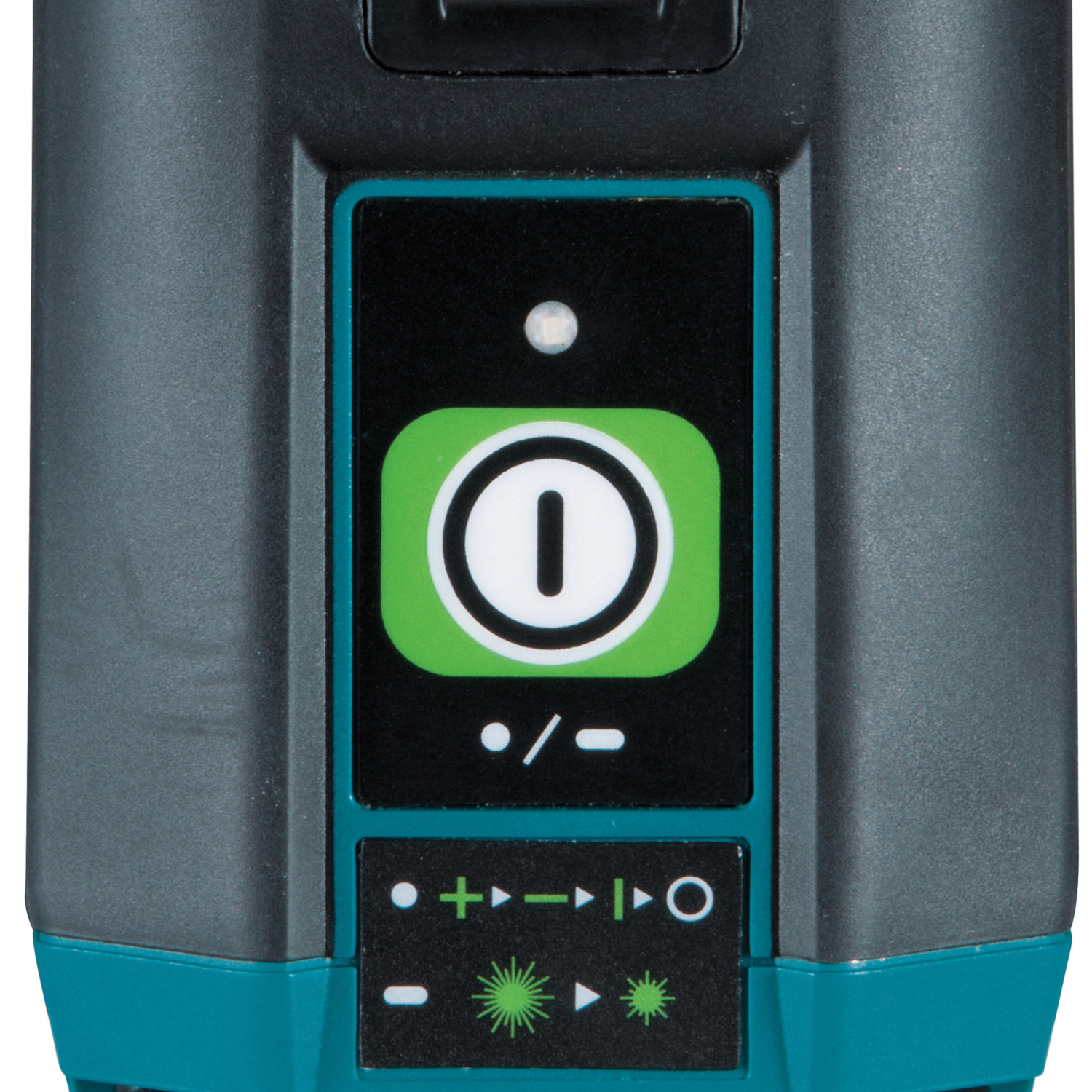

    • Simplified one button user interface for ease-of operation
    • Low laser brightness mode conserve battery power for extended run-time performance

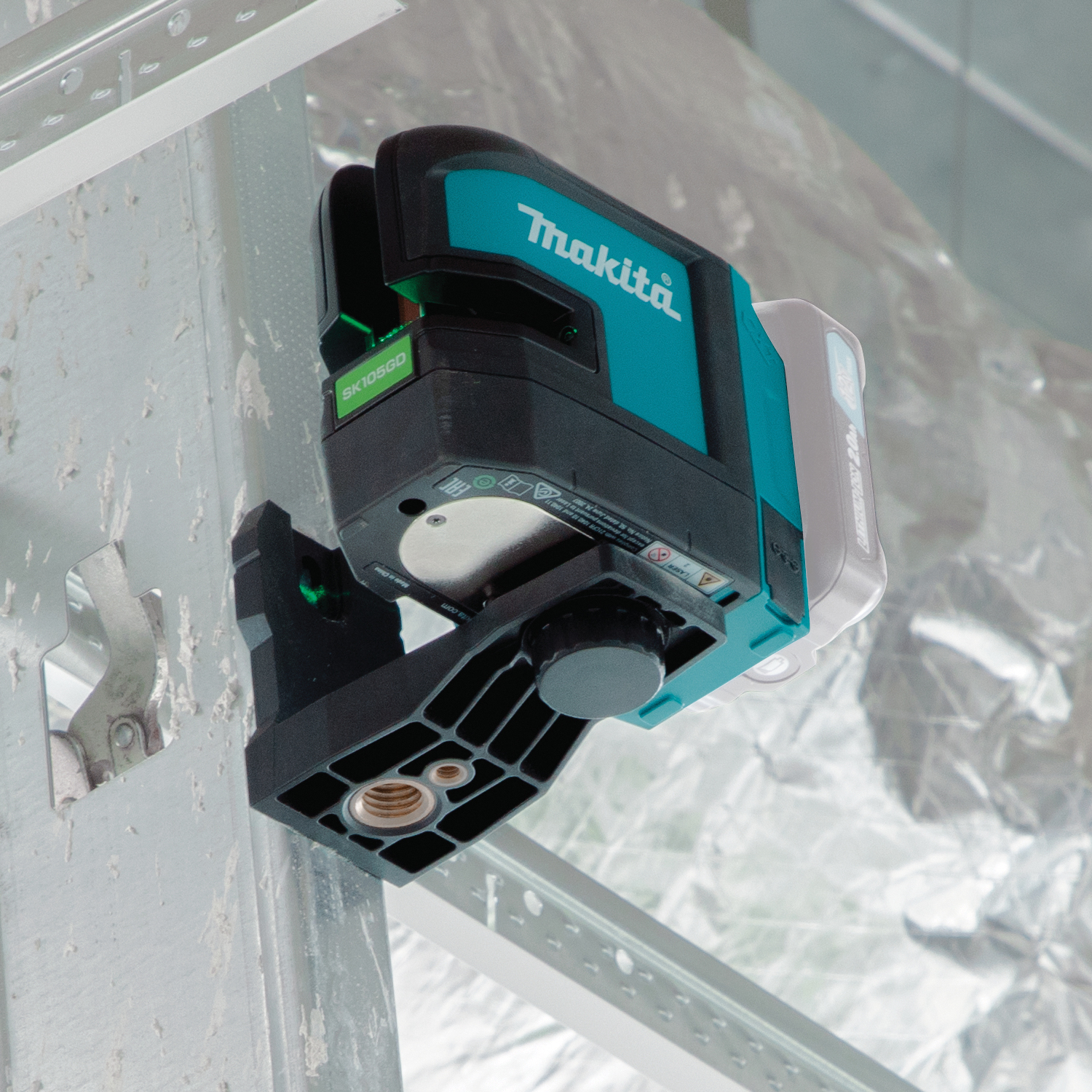

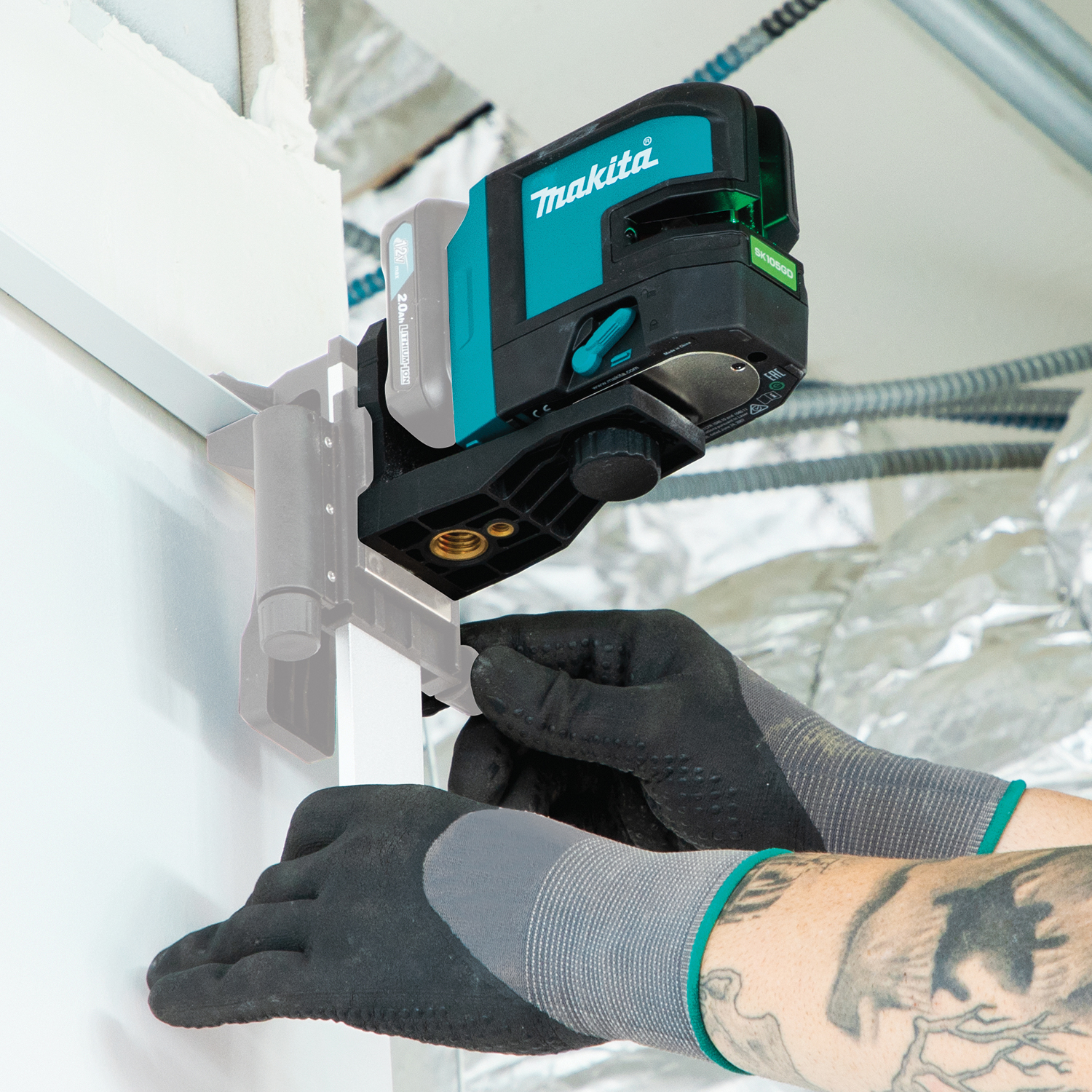

    • Multi-purpose magnetic bracket with integrated 1/4 and 5/8 in threads allow laser attachment to metal surfaces, wood surfaces or Makita® tripods (TK0LM1001F and TK0LM5030F)
