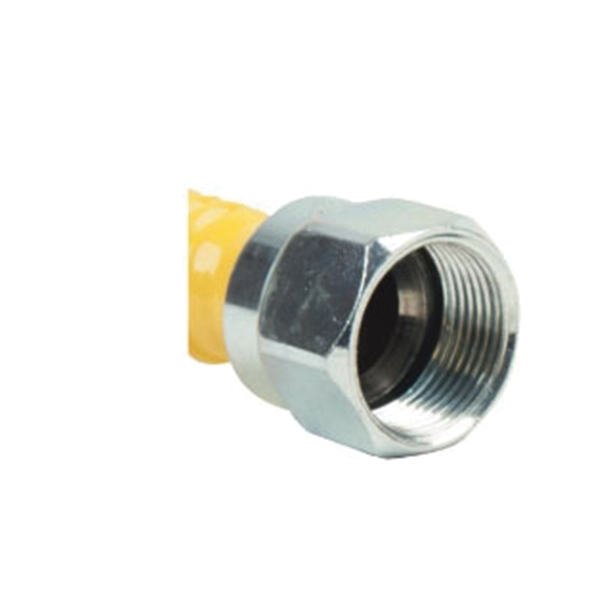

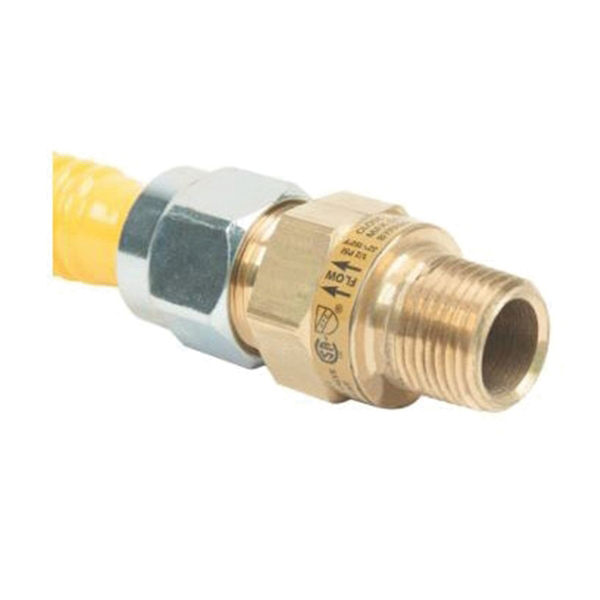

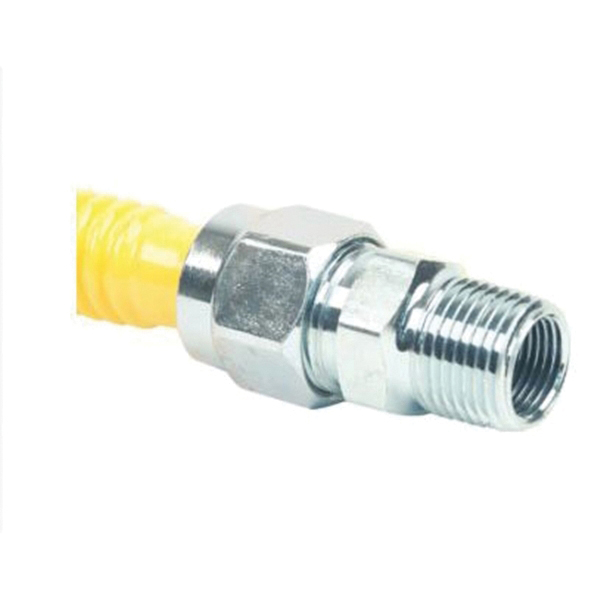

BrassCraft ProCoat Series CSSC44R-24 P Gas Connector, 1/2 in, MIP, Stainless Steel, 24 in L, 5/8 in OD

  • Model Number: CSSC44R-24 P
  • UPC: 026613167237
  • Store SKU: loading
  • BrassCraft ProCoat Series CSSC44R-24 P Gas Connector, 1/2 in, MIP, Stainless Steel, 24 in L, 5/8 in OD

    • Availability:
      • Supplier SKU: loading
      • Web SKU: 100074714
    BrassCraft CSSC44R-24 P

    BrassCraft's Safety+PLUS gas connector combines patented excess flow technology with the advanced corrosion resistance, to provide a safer gas connector for your home and family. in the event of a gas line rupture or disconnect, the Safety+PLUS excess flow valve (EFV) restricts gas flow at the appliance to a non-hazardous level. This immediate action helps avert the potential for a dangerous release of gas into the home. Gas is controlled only at the point where the problem exists, the rest of your system will continue to function. Safety+PLUS EFV automatically resets once the gas line is properly repaired. BrassCraft's stainless steel gas connector also features a proprietary polymer coating designed to withstand prolonged exposure to harsh household cleaning, plumbing repair and masonry products as well as UV-rays and salt. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly on-the connector surface at high-temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested to provide complete corrosion resistance.

    Color    :    Gold
    Connection Type    :    MIP
    Inside Diameter    :    1/2 in
    Length    :    24 in
    Material    :    Stainless Steel
    Nominal Size    :    1/2 in
    Operating Temperature    :    -20 to 150 deg F
    Outside Diameter    :    5/8 in
    Pressure Rating    :    0.5 psi
    • Corrugated stainless steel with corrosion-resistant coating
    • Safety+Plus EFV helps protect against gas fires and explosions
    • 1/2 in MIP connection to gas ball valve outlet or gas supply stub-out
    • Safety+Plus EFV has no parts that can break or misalign over time for 24/7 protection
    • Safety+Plus EFV is omnidirectional and can be installed in any position, vertical or horizontal
    • Safety+Plus EFV installs like a standard gas fitting, no special tools required
    • Safety+Plus EFV is 100% factory performance tested
    • ProCoat coating corrosion-resistant to harsh chemicals as well as UV-rays and salt
    • Gas connector is 100% leak tested
