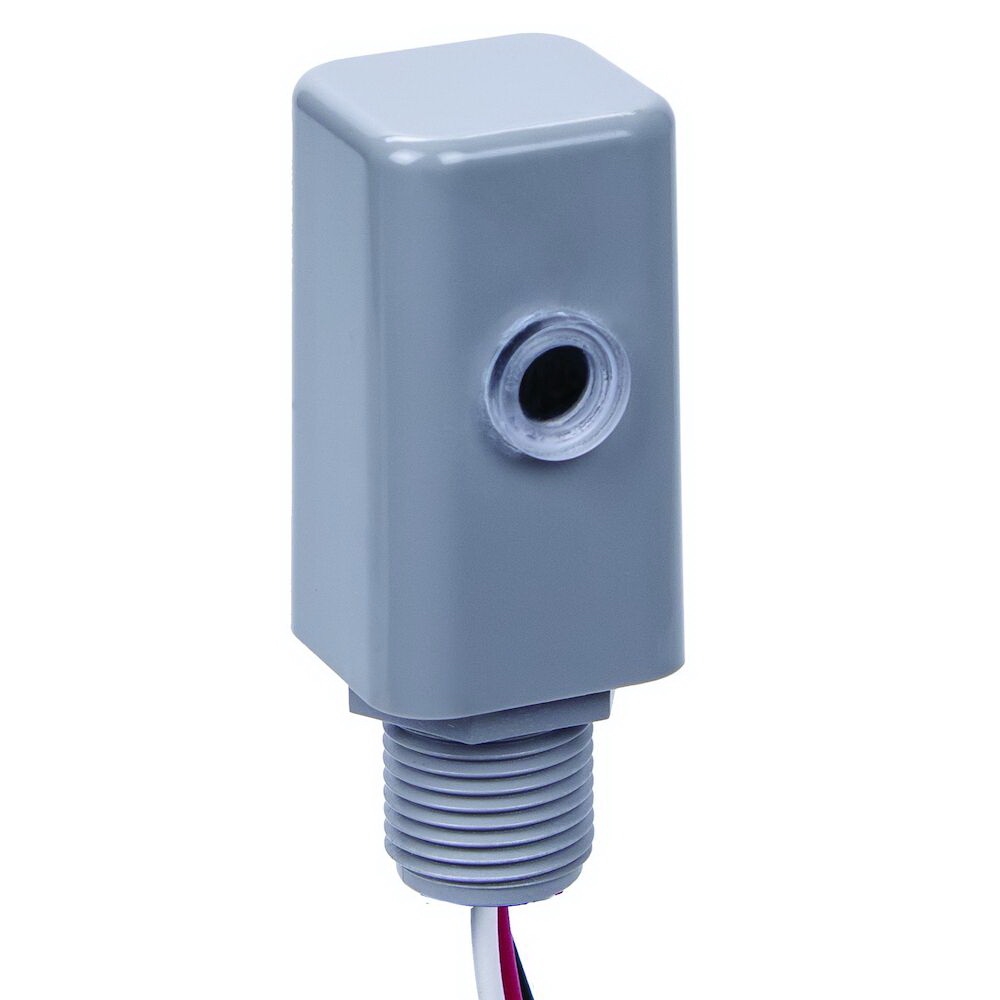

Intermatic EK4136S
NightFox™ electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. 1/2-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8 in diameter. Come with 9 in wire leads.
| Color | : | Gray |
| Current Rating | : | 6 A |
| Dimensions | : | 2-1/4 in H x 1-5/16 in W x 1-1/4 in D |
| Housing Material | : | Polycarbonate |
| Includes | : | Gasket and Nut |
| Mounting Type | : | Stem |
| Voltage Rating | : | 120 to 277 VAC |
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal-coated PCB
- 15 years design life
- Exceeds 10,000 On/Off switching cycles
- Fail ON mode
- Ideal for single or multi-fixture HID and LED installations (up to 1650 W at 277 VAC)
- 255 J MOV surge protection element
- #18 AWG wire leads
