The Sperry Instruments DSA600TRMS true RMS clamp meter has more features and functions without the extra cost. This clamp meter offers a large range of superior functions like advanced temperature measurements and peak hold. The meter gives true RMS readings and measures current without having to contact live conductors. This unit features a data hold switch to maintain the reading on the 5999 count backlit screen and auto power-off functionality to extend battery life. The built-in low battery indicator will ensure you won't get incorrect readings due to low batteries. Audible beeper offers easy continuity check (Buzzer sounds at 100 Ohms or less). We consider safety first, this instrument has been designed and tested according to cETLus standards and is CAT 3 600 V rated. This compact, lightweight, yet durable unit has a crush rating of 250 lb and a 10 ft drop rating the best in the industry.
| Accuracy | : | +/- (2.5% + 8) |
| Color | : | Yellow |
| Dimensions | : | 8-1/4 x 2-1/4 x 1-1/4 in |
| Display Type | : | Backlit LCD, Digital |

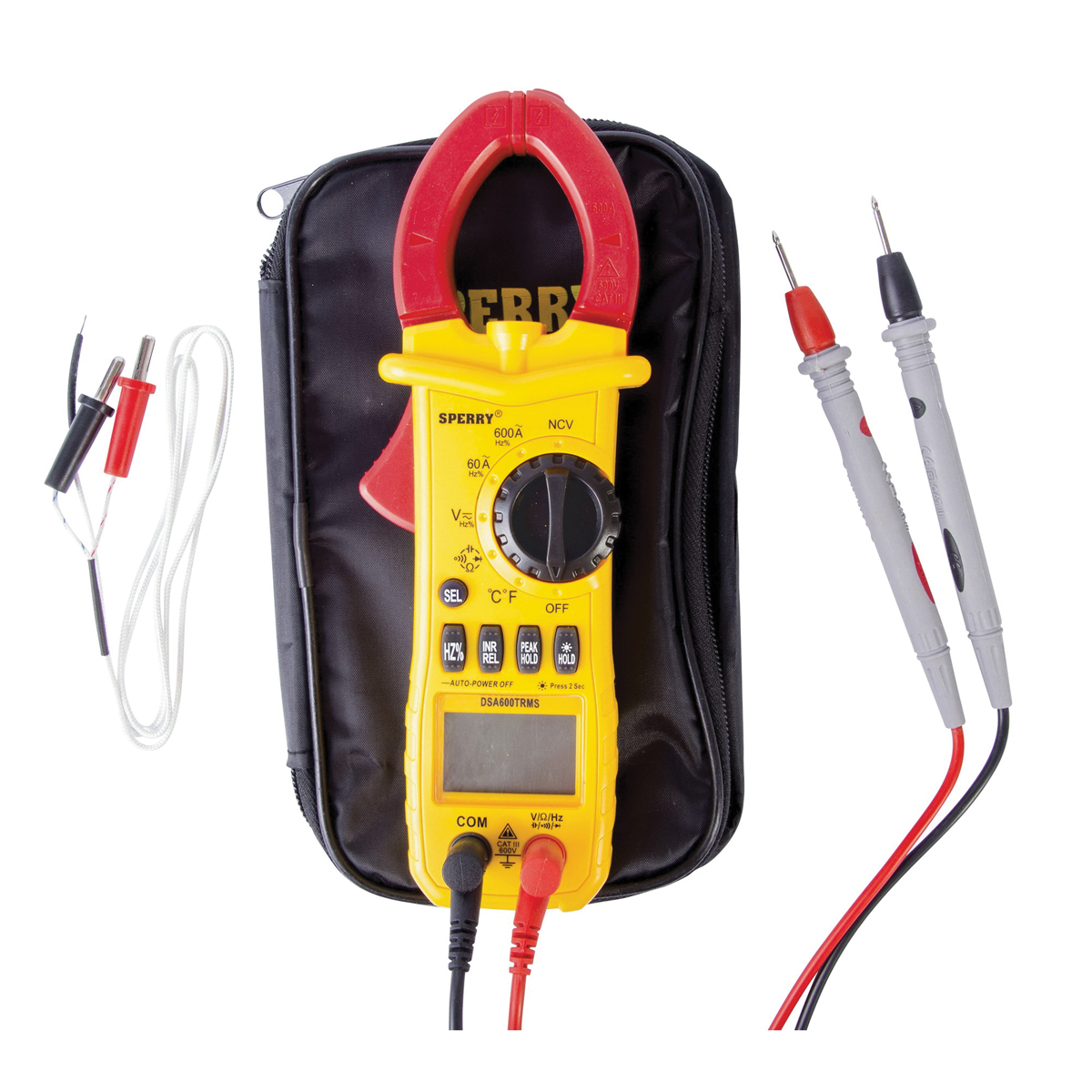

| Includes | : | Carry Case, (1) K-Type Thermocouple, (1) Red, (1) Black 1000 V, 20 A Test Heavy-Duty Leads, (3) 1.5 V AAA Battery |
| Measuring Functions | : | AC Current, AC/DC Voltage, Capacitance, Continuity, Diode Test, Duty Cycle, Frequency, InRush Current, Non-Contact Voltage Detection, Relative Measurement, Resistance, Temperature |
| Power Source | : | Battery |
| Power Supply | : | 4.5 VDC |
| Resistance | : | 0.1 to 60 MOhm |
| Resolution | : | 0.001 to 1 A AC Current and Surge Current, 0.01 mV to 0.1 V DC Voltage, 0.001 to 0.1 V AC Voltage, 0.01 to 100 Hz Frequency, 0.1% Duty Cycle, 1 Temperature, 0.1 to 0.01 MOhm Resistance, 1 pF to 100 nF Capacitance |
| Temperature Rating | : | 18 to 28 deg C |
| Type | : | 12-Function |
- Precise true RMS circuitry
- Integrated non-contact voltage detection
- Data hold capability to maintain reading on display
- Auto power Off functionality to save battery life
