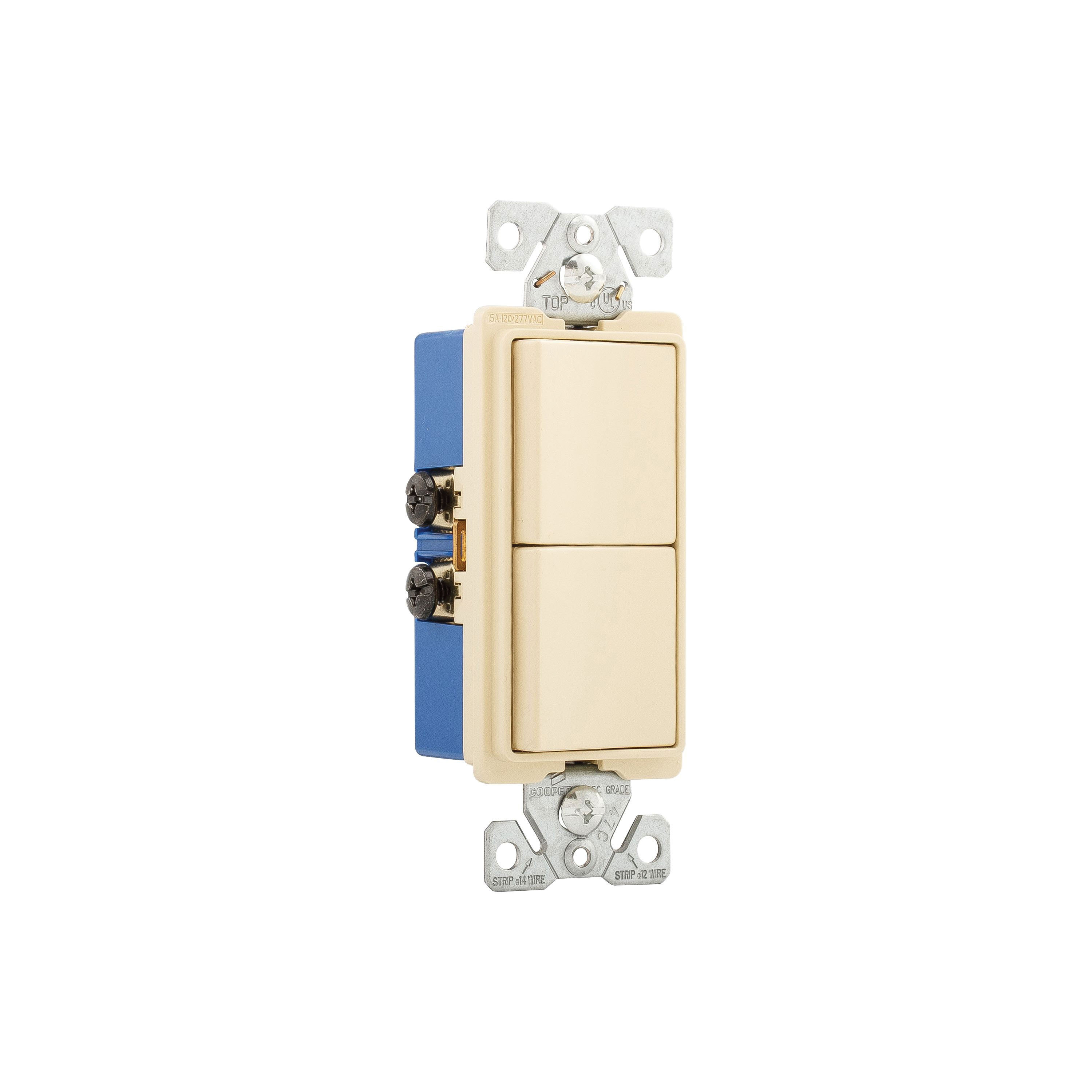

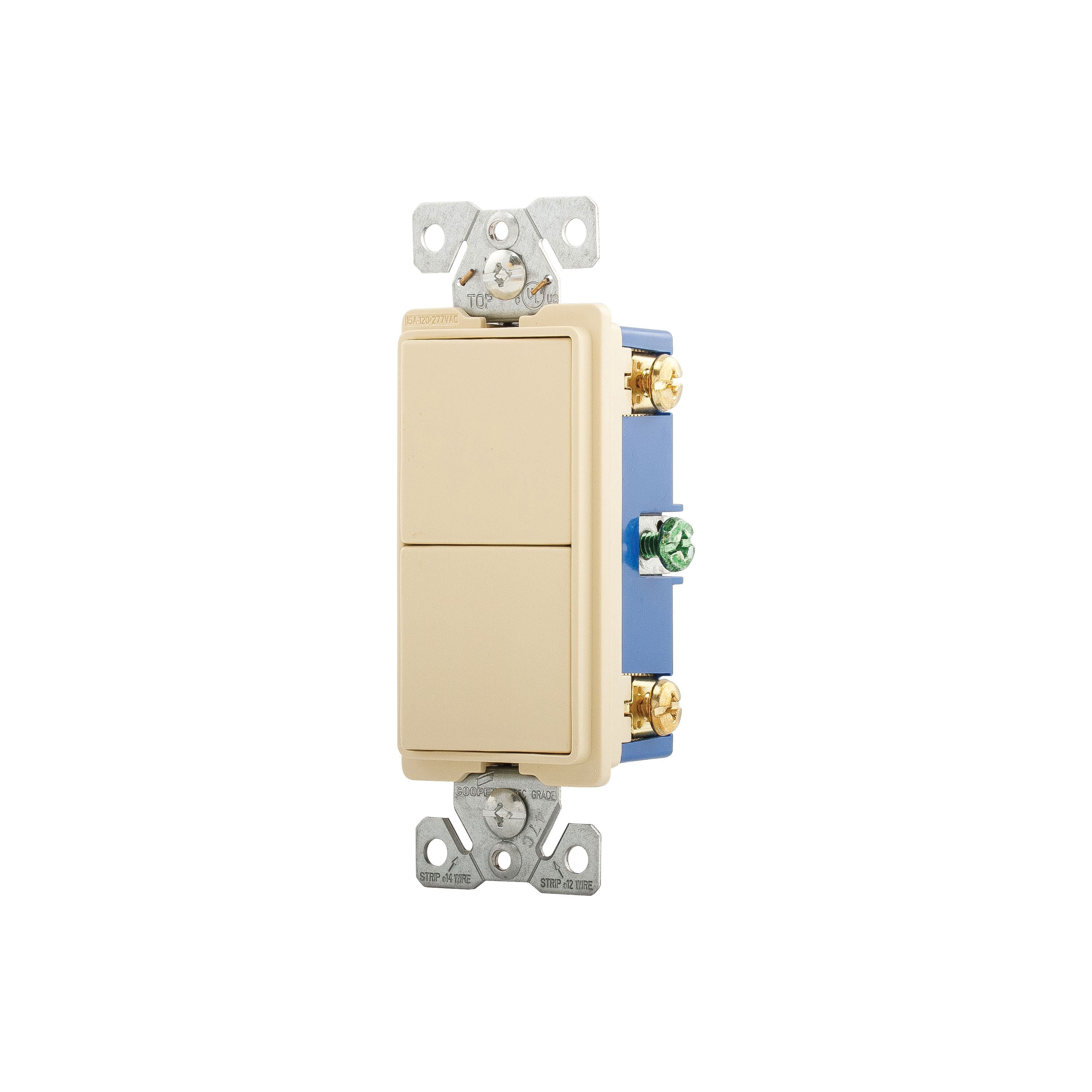

Eaton 7729V-SP Combination Switch, 15 A, 120/277 V, SPST, Back Wire, Side Wire Terminal, Thermoplastic Housing Material - 1
EATON
Send Print

Eaton 7729V-SP Combination Switch, 15 A, 120/277 V, SPST, Back Wire, Side Wire Terminal, Thermoplastic Housing Material

  • Model Number: 7729V-SP
  • UPC: 032664664823
  • Store SKU: loading

  • Eaton 7729V-SP Combination Switch, 15 A, 120/277 V, SPST, Back Wire, Side Wire Terminal, Thermoplastic Housing Material

    • Availability:
      • Supplier SKU: loading
      • Web SKU: 101878289
    EATON 7729V-SP

    Eaton Combination Switch, 120/277 V, 15 A, Number of Poles: 1, Contact Material: Brass, Contact Configuration: SPST, Terminal Type: Back Wire, Side Wire, Temperature Rating: -20 to 60 deg C, Flush Mounting, Housing Material: Thermoplastic, Ivory, Dimensions: 4.304 in H x 1.785 in W x 1.904 in D

    California residents see Prop 65 WARNINGS

    Color    :    Ivory
    Contact Configuration    :    SPST
    Contact Material    :    Brass
    Current Rating    :    15 A
    Dimensions    :    4.304 in H x 1.785 in W x 1.904 in D
    Housing Material    :    Thermoplastic
    Mounting Type    :    Flush
    Number of Poles    :    1
    Temperature Rating    :    -20 to 60 deg C
    Terminal Type    :    Back Wire, Side Wire
    Voltage Rating    :    120/277 V
    • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
    • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
    • Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings
    • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
    • Steel mounting strap is zinc-plated for added corrosion resistance
    • Backwire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
    • Terminal screws are backed-out and ready for wiring to enhance ease of installation
    • Break-off provision for wiring both devices on same circuit or on separate circuits
    • Decorator design features easy, smooth actuation of the rocker
